CODE V Improves Optical Design Workflows and Efficiency

CODE V Improving Optical Design Workflows Efficiency

The latest features in CODE V 2023.03 enhance workflow from surface input through design export, including the SagFit tool, which converts fits surfaces with greater speed intuitive ease than ever before, improving optimization assistance increasing design speed. Enhanced compatibility with LightTools makes simulating optical systems with imaging non-imaging elements a breeze. Read on to find out how you can improve your productivity design optical systems faster with the latest CODE V features.

Introducing the New SagFit Tool

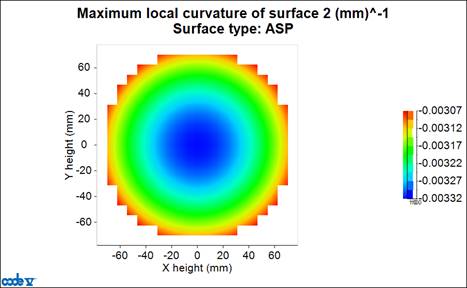

When using measured sag data CAD surfaces, the new SagFit tool can be used to fit the surfaces to native CODE V surfaces. Native CODE V surfaces provide additional flexibility control for optimizing your designs. Here’s how it operates in three simple steps:

– Open a file containing sag data or an existing surface in your current lens for the fitting process.
– Select the type of surface you’d like to fit and define it.
– Use the SagFit tool to convert fit the surface faster more intuitively than before, providing better optimization assistance increasing design efficiency.

Improving Design Workflow Boosting Productivity with CODE V 2023

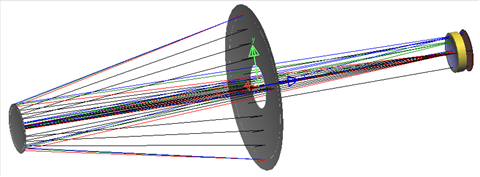

CODE V 2023 offers improved workflows from surface input through to design export, with the SagFit tool converting fitting surfaces faster more intuitively. This provides better optimization guidance increases design speed. Furthermore, enhanced compatibility with LightTools enables easier simulation of optical systems containing imaging non-imaging components, allowing you to more efficiently design optical systems.

The New SagFit tool in CODE V 2023 enables you to quickly convert fit surfaces, providing greater flexibility control over design optimization.
