HydraCAD V56 for AutoCAD 2019

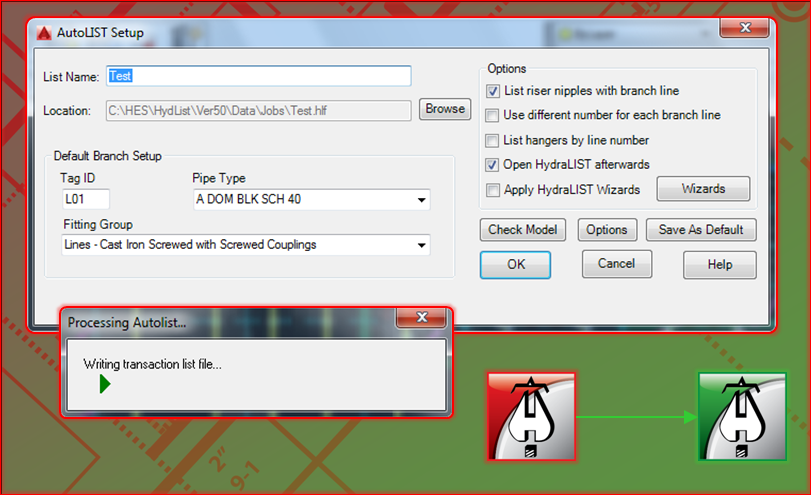

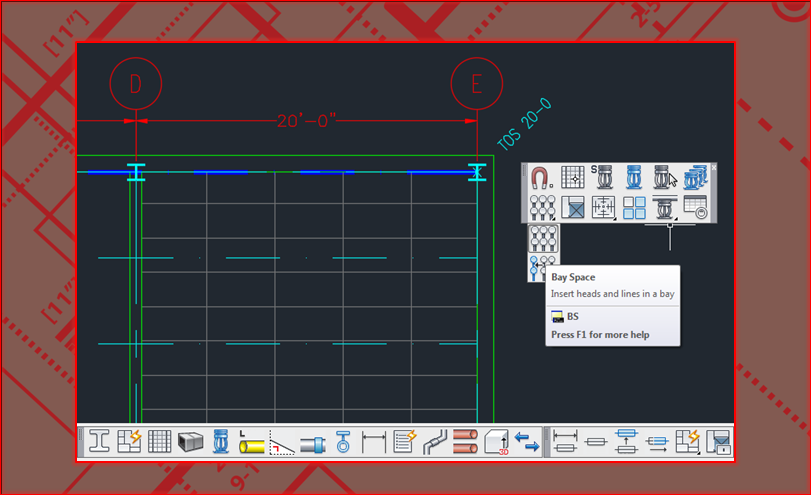

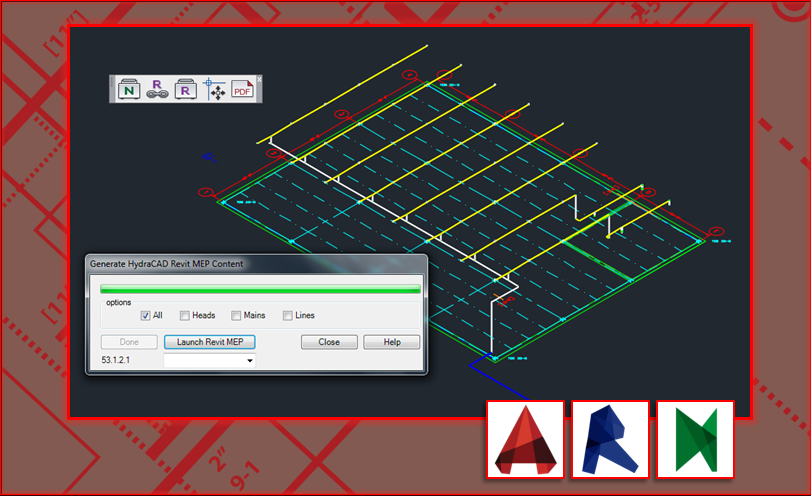

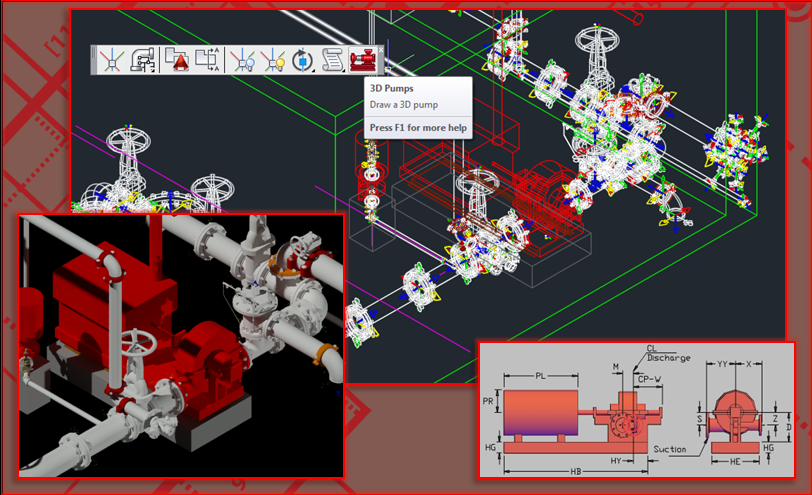

BIM, Revit MEP Suite and Navisworks compatible. Produce 3D Hangers, Earthquake braces, Piping, Couplings, Fittings and Zones of Influence.Automatic cut lengths on pipe and hangers.Generate a true 3D drawing from 2D drawing no need to draw everything in 3D.Hanger, riser nipple and drop lengths automatically figured.Head elevation automatically generated for calculations.Complete documentation on-line Windows help file and up to date manuals and tutorials.Draw risers and pump details in 3-D.Kits and Assemblies are easy to build and stocklist.Calculate volume of dry pipe systems with one pick.Stocklist plastic systems with one pick and get raw material list.Draw the way you want to: draw at any angle, draw pipe in any order – use any AutoCAD command.Use architect backgrounds without any modification, toolkit available to clean up extra information on architect drawings.Draw at any scale or on any sheet size on any size drawing.Automatic cleanup of pipe sizes and hangers cleaned up sizes stay where you put them.Automatic sizing and noding of entire drawing or use your own.Two-way automatic calculation process changed sizes return to drawing.Ability to calculate and stocklist not-to-scale piping and disconnected piping.Automatic drawing checkups to verify piping connections.Convert drawing, stocklist and/or calculations between Imperial and Metric unit systems.And countless more
Requirements
V56 for AutoCAD 2019.*V55 for AutoCAD 2018.*V54 for AutoCAD 2017.*
*compatible with the 64-bit versions of Windows 7, Windows 8 and Windows 10.
