Advanced modelling at your fingertips
Strand7 lets you build models quickly. Create, delete and manipulate elements with a comprehensive set of tools, automatic meshing and unlimited undo. Organise a complicated model into a simple set of parts using the Group Tree. Define your own coordinate systems and beam cross-sections. Check mesh quality with aspect ratio and warping contours and free edge detection.a flexible working environment
Strand7 harnesses the power of Windows®. Open multiple models at the same time. Cut-and-paste elements in 3D even between models and copy data to and from other Windows® programs. Import geometry data from IGES, ACIS, STEP and DXF files. Choose drawing styles and colours. Set the physical units for viewing and entering data. Dynamically rotate, pan and zoom in real time with a single click.
 |
 |
..clear, detailed results
Strand7 gives you a range of result options. Visualise results with contour maps, vector maps and X-Y graphs. Use the Peek tool to inspect result quantities at any point, directly on the model. View, sort and filter results with the Result Listings spreadsheet...easy, professional reports.
Strand7 offers a full set of previewing and printing tools for documenting and reporting your work. Choose your own fonts, titleblocks and logos for a consistent, professional look across all your printing.Extensive element library
1D: Beam, truss, pipe, spring, damper, connection, catenary cable and contact elements (2D and 3D)
2D: Plane stress, plane strain, plate/shell, 3D membrane, shear panel and axisymmetric elements
3D: Tetrahedral, wedge, pyramid and hexahedral elements
Constraints: Rigid links, pinned links, master/slave links, sector-symmetry links, coupling links, attachment linksComprehensive range of solversStatic: Linear, buckling, influence and non-linear (geometric, material and boundary non-linearity)
Dynamic: Natural frequency, harmonic response and spectral response
Transient: Linear and non-linear (geometric, material and boundary non-linearity)
Heat transfer: Steady-state and transient (linear and non-linear)Standard and specialist materialsLinear and non-linear material models, including: Isotropic, orthotropic, anisotropic, soil, rubber, composite laminates and user-defined materialsIndustry-standard data librariesMaterials: Engineering properties for common materials steel, timber, aluminium, concrete and glass
Sections: Industry-standard cross-sections, including I-beams, tubes, channels and angles

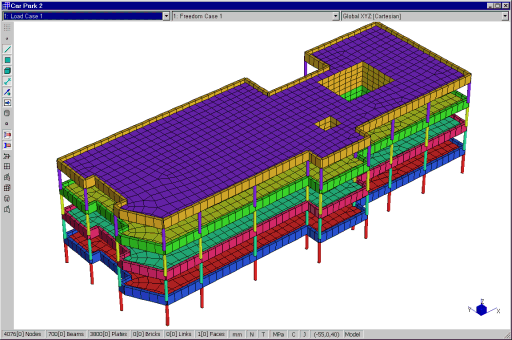

| Environment | |
| Data files | |
| The entire Strand7 data file is stored in a single .ST7 file. This is a compact binary file that makes book-keeping, maintenance and model archiving much easier. Strand7 results are also stored in single files for example, linear static analysis results are stored in a single .LSA file. Strand7 result files are significantly smaller than those typically generated by other FEA software. | |
| Configuration | |
| Strand7 is highly user-configurable. For example, you can set a wide range of display options, such as colours, lighting and perspective. You can also configure file locations, which is useful in a networked environment you can keep model files on a shared network drive while keeping temporary files on a faster local PC drive. | |
| Context-sensitive help | |
| Press F1 at any time to view context-sensitive help. Strand7 has a comprehensive, hyperlinked on-line help system that includes tutorials, modelling techniques and theory. | |
| Multiple model processing | |
| Strand7 allows you to open multiple models simultaneously. You can exchange data graphically between models using copy/cut-and-paste tools. You can solve more than one model at the same time, even while editing and post-processing other models. | |
| Physical units | |
| Strand7 is fully units-aware. You can set and modify all the physical units used by Strand7. These units do not have to be consistent should you so desire, you can mix metres and kilograms with feet and pounds. | |
| Language support | |
| Strand7 supports a range of different languages including Chinese and Japanese. | |
| Building models | |
| Unlimited entity creation | |
| Strand7 does not impose any limits on the number of nodes or elements, or the number of equations. Any limitations imposed are generally hardware-related. For example, the maximum number of load cases is 32000, which is virtually unlimited for real modelling purposes. | |
| Real-time dynamic rotation | |
| You can rotate, scale and pan the entire model in real-time, using only the mouse. This feature is available in wireframe mode or fully-shaded solid mode, and doesnt require special graphics cards or graphics acceleration. You can also use it to dynamically change the displacement scale when looking at results. Simply click and drag to set the required displacement scale. | |
| Groups | |
| Use element groups to organise and manage large models. Create a set of groups, which can be organised into an appropriate hierarchy of your choice. Then, assign elements to these groups. You can show and hide elements, select elements and view results by group. | |
| User-defined beam sections | |
| Design your own beam cross-sections. Strand7 renders these in 3D for both pre-processing and post-processing, so you can create sections of arbitrary shape and immediately view them in the graphical editor. Strand7’s section calculator generates exact torsional constants, shear areas and warping constants whenever you create a user-defined section. | |
| Verification tools | |

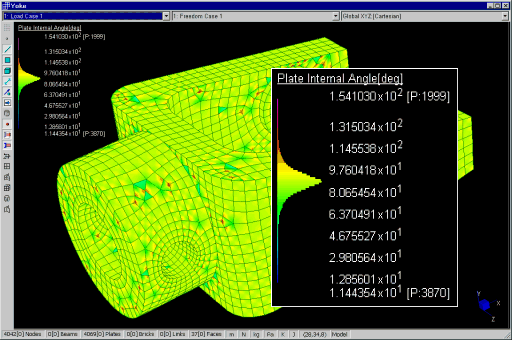

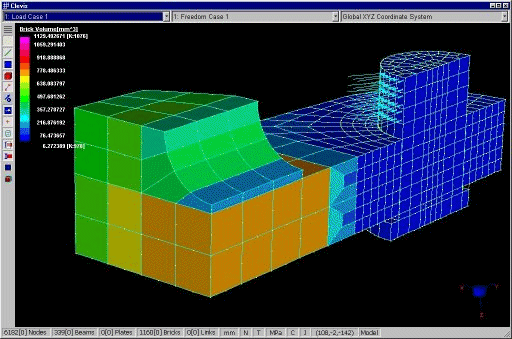

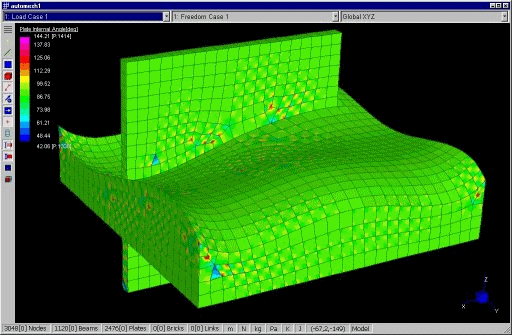

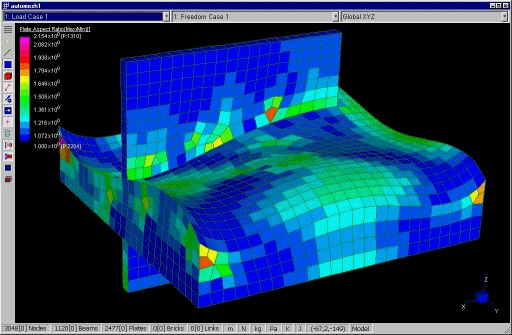

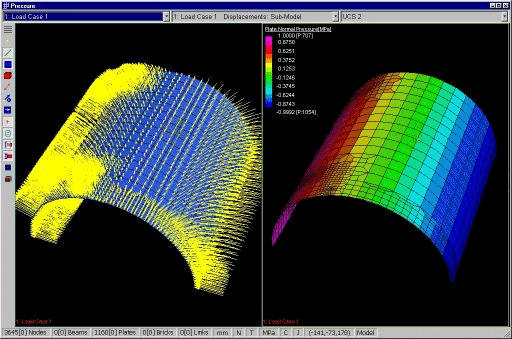

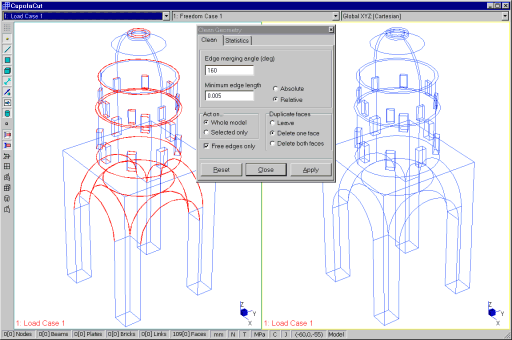

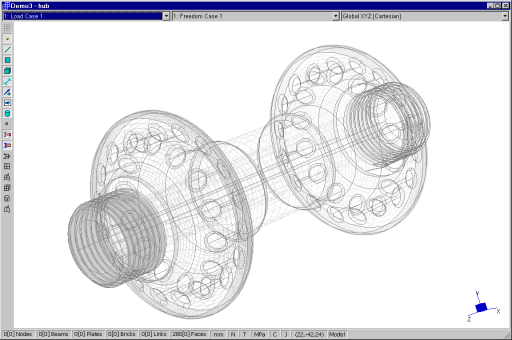

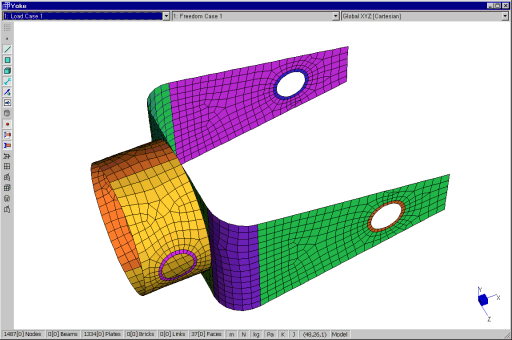

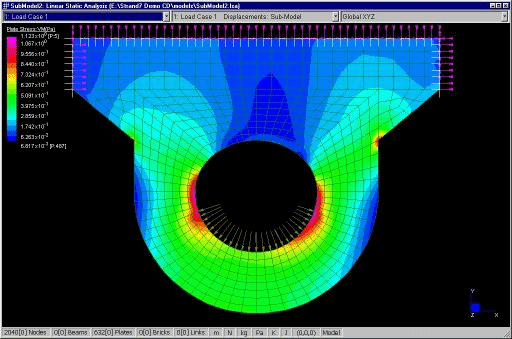

| Strand7 offers many mesh verification tools, like free-edge display. You can contour many quantities, including aspect ratio, volume and applied pressure and temperature. | |
| General equation input | |
| Enter numbers as mathematical expressions. For example, you can assign node forces and plate pressures as functions of position. | |
| Undo and redo | |
| Strand7 offers a powerful unlimited undo capability. You can undo all modelling changes, no matter how complex or how many entities are affected. A redo function lets you reverse the previous undo. | |
| Automatic mesh generation | |
| Strand7 includes automatic mesh generation tools, working directly from geometry. You can automatically generate 4-node and 8-node plates from 2D regions, and 4-node and 10-node tetrahedra from 3D regions. Strand7 provides powerful geometry input tools for the automatic mesher. Alternatively, you can import CAD-generated data for more advanced CAD geometry. IGES, STEP, AutoCADs DXF format and Spatials ACIS format are supported. And to ensure you can generate a good quality mesh, Strand7 includes a suite of geometry cleaning, healing and defeaturing tools. | |
| User-defined coordinate systems | |
| Define your own coordinate systems, which can be rectangular, cylindrical, spherical or toroidal. Local coordinate systems can greatly simplify model-building and results extraction. | |
| Plate thickness display | |
| Strand7 can render plate element thicknesses. This lets you clearly visualise the relative thickness of each plate, and helps you check for errors. You can easily contour results such as stresses on both plate surfaces simultaneously. | |
| Sub-modelling | |
| Sub-modelling allows you to extract parts of a model and save them as separate files, with boundary displacement conditions automatically enforced as constraints. This lets you perform local mesh grading without having to re-solve the entire model. | |

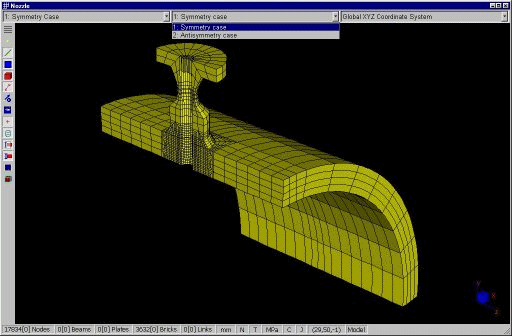

| Multiple freedom cases | |
| You can generate results for multiple sets of freedom conditions in a single model. | |
| Investigating results | |
| Solvers | |
| Strand7 includes the following solvers:
Linear staticNatural frequencyBucklingNonlinear staticLinear and nonlinear transient dynamicSpectral and harmonic responseLinear and nonlinear steady-state heat transferLinear and nonlinear transient heat transfer
Bill of materials for each group or sets of groupsInertia properties for each group or sets of groups |
|
| Cutting planes | |
| You can specify arbitrary cutting planes in brick models, and view stress contours on these planes. | |
| Load case combinations | |
| You can create a virtually unlimited number of load case combinations. Change these combinations at any time without having to re-solve the model. | |
| Searching | |
| Use searching to locate certain result values, or results exceeding a certain value. | |
| Result contours | |
| Strand7 helps ensure you detect all stress concentrations. You can contour stress that has been: averaged, not averaged, averaged only across elements with the same material, and averaged only across elements in the same plane (for plate elements). | |
| Enveloping | |
| For problems with multiple load cases, or transient problems with many time steps, you can display the envelope of maximum results over every load case or time step. | |
| Listings and reporting | |
| List, sort, filter and print result data in report format. You can filter results by group and property, and view results for only those entities selected in the graphical editor. For more detail, request plate and brick results at nodes and Gauss points, and beam results at many positions along each beam. | |
| XY plots | |
| You can generate an XY plot of virtually any result parameter between two points on the model. Simply click on two nodes to specify the desired path. | |
| Elements and attributes | |
| Nodes | |
| Strand7 includes the following node attributes:
ForcesMomentsRestraints (in any coordinate system)Mass (translational and rotational)Stiffness (translational and rotational)Temperature (constant and time-varying)DampingVelocity and accelerationResponse variablesHeat source |
|
| Beam attributes | |
| Strand7 includes the following beam attributes:
End-releases (full and partial release)Offsets, local angles and arbitrary shear centresTaperTemperature gradients in principal axesPoint forces and moments (local and global)Constant and linear distributed loads (local and global)Distributed elastic supportsDistributed non-structural massStiffness and mass scalingPre loads (tension or strain)Response variablesAttachmentThermal fluxConvection and radiation coefficientsHeat source |
|
| For pipe elements, Strand7 includes the following attributes:
Pipe radiusInternal and external temperatureInternal and external pressure |
|
| For cable elements, Strand7 includes the following attribute:
Free length |
|
| Plate attributes | |
| Strand7 includes the following plate attributes:
Offsets and local anglesEdge releasePre-stress or pre-strainTemperature gradients through the thicknessPoint forces and momentsSurface pressure and shear (local and global)Edge pressure, edge shear and edge normal shearSurface and edge elastic supportsDistributed non structural massResponse variablesSoil in-situ conditionsReinforcement layoutsAttachmentThermal fluxConvection and radiation coefficientsHeat source |
|
| Brick attributes | |
| Strand7 includes the following brick attributes:
Local axis orientationElastic supportPre-stress or pre-strainPoint forcesPressure (local and global)ShearResponse variablesSoil in-situ conditionsAttachmentThermal fluxConvection and radiation coefficientsHeat source |
|
| Materials | |
| You can define your own materials or extract them from a user-configurable materials library.
Material models supported by Strand7 include: IsotropicOrthotropicAnisotropicLaminateRubberSoilUser-defined |
|
| To define nonlinear material behaviour, you can specify stress vs strain, force vs displacement, moment vs curvature and moment vs rotation tables.
Yield criteria supported by Strand7 include: Trescavon MisesMohr-CoulombDrucker-PragerPrincipal stress |
|
| Beam elements | |
| Strand7 includes the following beam types:
Standard beamsTrussesCutoff barsPoint contactsSprings and dampersCablesConnectionsUser-defined beams |
|
| Plate elements | |
| Strand7 plates may be
Triangular (3 or 6 nodes)Quadrilateral (4, 8 or 9 nodes) Included are the following plate types: 2D plane stress2D plane strainAxisymmetricPlate/shells (thick and thin)Shear panels3D membranes |
|
| Brick elements | |
| Strand7 bricks may be:
Tetrahedra (4 or 10 nodes)Pyramids (5 or 13 nodes)Wedges (6 or 15 nodes)Hexahedra (8, 16 or 20 nodes) |
|
| Links | |
| Strand7 includes the following link types:
Sector symmetryRigid linksPinned linksMaster/slave linksCoupling linksShrink linksAttachment linksMulti-point links |
|
| Documentation | |
| In addition to the context-sensitive on-line help, the following documentation is available:
Using Strand7 is an easy to read, concise manual, which covers all the basics of Strand7. It is normally used as a getting started guide.The Strand7 Verification Manual contains hundreds of fully documented problems, complete with reference solutions and comparisons with Strand7 solutions. The actual model files are also distributed as part of the Strand7 installation for user reference and quality assurance reasons. |
|
The Strand7 environment
| Data files The entire Strand7 data for a given model is stored in a single .ST7 file. This is a compact binary file that makes book-keeping, maintenance and model archiving easy. Strand7 results are also stored in single files for example, linear static analysis results are stored in a single .LSA file. Strand7 result files are significantly smaller than those typically generated by other FEA software. |
| Multiple model processing Strand7 allows you to open multiple models simultaneously. You can exchange data graphically between models using cut-and-paste tools. You can solve more than one model at the same time, even while editing and post-processing other models. |
 |
| Configuration Strand7 is highly user-configurable. For example, you can set a wide range of display options, such as colours, lighting and perspective. You can also configure file locations, which is useful in a networked environment you can keep model files on a shared network drive while keeping temporary files on a faster local PC drive. |
 |
 |
| Physical units Strand7 is fully units-aware. You can set and modify all the physical units used by Strand7. These units do not have to be consistent should you so desire, you can mix metres and kilograms with feet and pounds. You can even solve the model in one set of units and then view and post-process the results in a completely different system without re solving the model. |
 |
| Context-sensitive help Press F1 at any time to view context-sensitive help. Strand7 has a comprehensive, hyperlinked on-line help system that includes tutorials, modelling techniques and theory. |
 |
